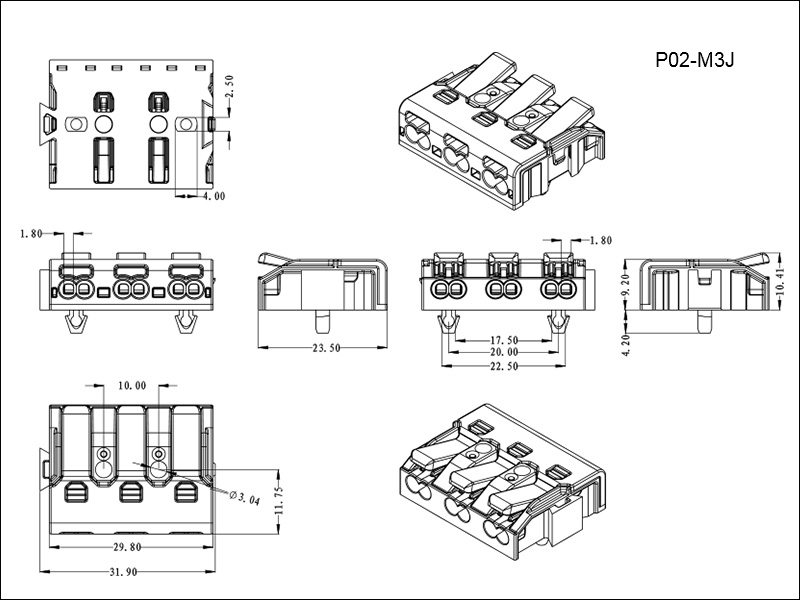

P02-M3J / 9

新品薄款印字内容可定制

Item No.		P02-M3/9	P02-M3J/9
Electrical Data
		IEC/EN	UL
Rated Voltage		450V	300A
Rated Current		17.5A	9A
Ambient Temperature		T110	105℃
Connection Data
		IEC/EN	UL
Installation side	Solid conductor	0.5-2.5mm²	AWG 16-20
	Strand conductor	0.5-1.5mm²
	Flexible conductor
Factory side	Solid conductor	0.5-1.5mm²	AWG 16-20
	Strand conductor
	Flexible conductor		-
Strip length		8-10mm
Means of connection		push in
Rewirable		✔
Number of terminals		multiway
Number of connection points		3*2
Means of Fixing		screw fixed / fixing snap
Flammability class		UL 94V-2
Marking on Button		NEL
Compatible Products
Compatible Products（Junction boxes）		TB02
Packing Quantity（pcs/carton）		1000

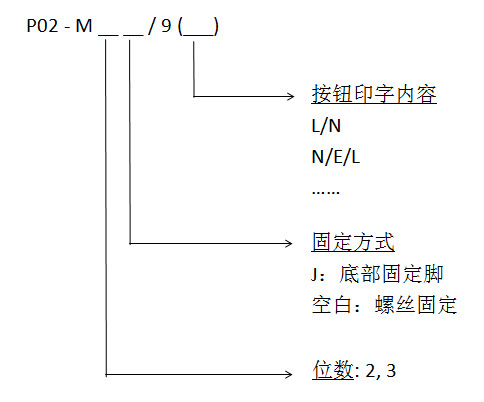

产品型号编码
